Advanced IGBT inverter technology is adopted for accurate feedback control, and the current output is stable;
The current rising function reduces the arc striking impact and the consumption of cutting gun accessories;
Air pressure and water pressure sensors can effectively protect the cutting gun from accidental damage;
Inverter control power supply: small size, light weight, can be installed on the beam of NC cutting machine; High efficiency and low energy consumption, greatly reducing the use cost.
Machine type setting: arc success signal, arc voltage signal, two-way gas supply control, arc voltage output function; In particular, CNC and robot cutting are used.
| Product model | CUT-100 | CUT-120 | CUT-160 | CUT-200 |
| input voltage | AC380V±15% | AC380V±15% | AC380V±15% | AC380V±15% |
| Rated input capacity | 17.8KVA | 22.4KVA | 32.2 KVA | 40KVA |
| Rated input current | 22A | 39A | 45A | 54.9A |
| Rated No-Load Voltage | 275V | 275V | 315 V | 315V |
| Cutting current regulation range | 30-100A | 30-120A | 40-160A | 40-200A |
| Cutting thickness | 40 | 45 | 55 | 55 |
| gas pressure | 0.4~0.6 | 0.4 〜0.6 | 0.4~0.6 | 0.4 〜0.6 |
| Current rise and fall time | 0.1 〜0.2 | 0.1〜0.2 | 0.1 〜0.2 | 0.1~0.2 |
| Arc voltage output signal | 1:1/1:20arc voltage | 1:1/1:20arc voltage | 1:1/1:20arc voltage | 1:1/1:20arc voltage |
| Rated load duration | 100% | 100% | 100% | 100% |
| Insulation class | F | F | F | F |
| Enclosure protection class | IP21S | IP21S | IP21S | IP21S |
| Overall dimension | 628X330X565 mm | 628X330X565mm | 734X375X598mm | 760X375X780mm |
| weight | 47Kg | 47Kg | 66.5 Kg | 77.9Kg |

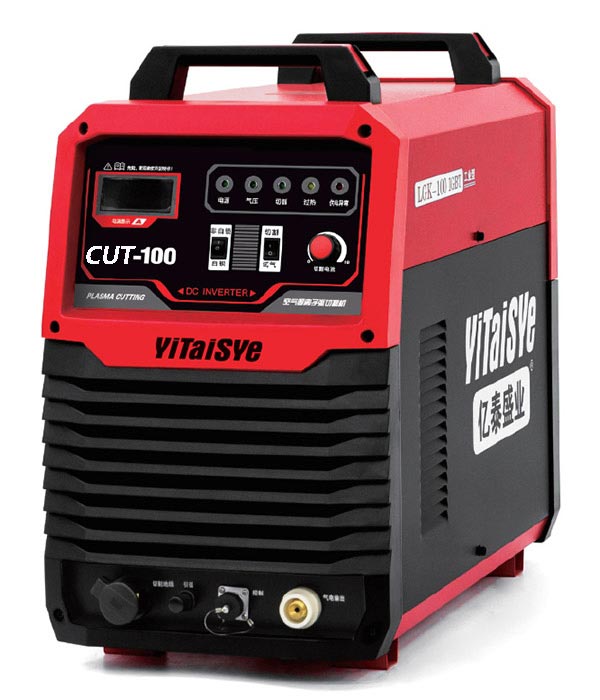

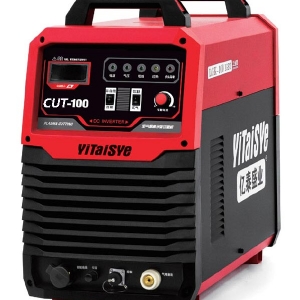

CUT-100
