      1. TIG-250

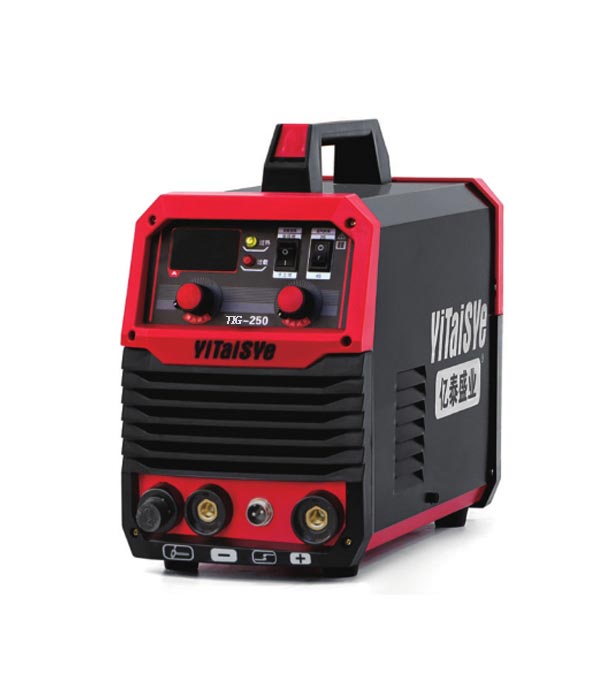

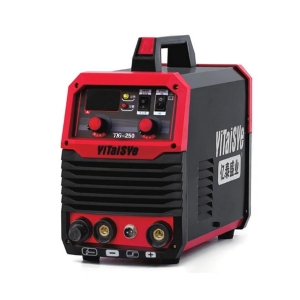

    TIG-250

    It has overvoltage and overcurrent protection functions;

    icon图标Hotline:400-679-7773

    icon图标Toll free:0537-6440898

    icon图标Address: machun electromechanical Industrial Park, Jiaxiang County, Jining City, Shandong Province

    给我们留言

    信息详情

    250

    It has overvoltage and overcurrent protection functions;

    Adopt advanced inverter technology, small volume and light weight;

    High frequency pressurized arc striking, good arc starting performance and stable arc during welding;

    Unique output characteristic design, more suitable for wire filling welding, beautiful weld;

    It can be widely used in petroleum, chemical industry, power construction, metallurgy, chemical construction, boiler, pipeline and other manufacturing industries;

    It is suitable for welding all positions of low carbon steel, cast iron, stainless steel, copper alloy, aluminum alloy, etc.


    Product modelTIG-200TIG-250TIG-315TIG-400
    Rated input voltageAC220V±15%AC220V±15%AC380V±15%AC380V±15%
    Power frequency50/6050/6050/6050/60
    Rated input power(kva)3.449.318.8
    No load voltage60606060
    Output current regulation(A)10-20010-25010-31510-400
    Load duration(%)60%60%60%60%
    Degree of protectionIP21SIP21SIP21SIP21S
    efficiency(%)80%80%80%80%
    Insulation classFFFF
    Overall dimension360X170X295mm360X170X295mm470X220X360mm510X240X410mm
    weight7.3kg7.3kg11.6kg22kg
    TIG-250
    TIG-250 2021-3-17 Be read 467 times
