      1. MIG-500V

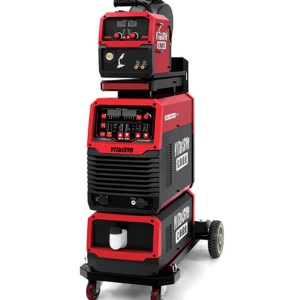

    MIG-500V

    Full digital system to realize fine welding of excessive droplet;

    icon图标Hotline:400-679-7773

    icon图标Toll free:0537-6440898

    icon图标Address: machun electromechanical Industrial Park, Jiaxiang County, Jining City, Shandong Province

    给我们留言

    信息详情

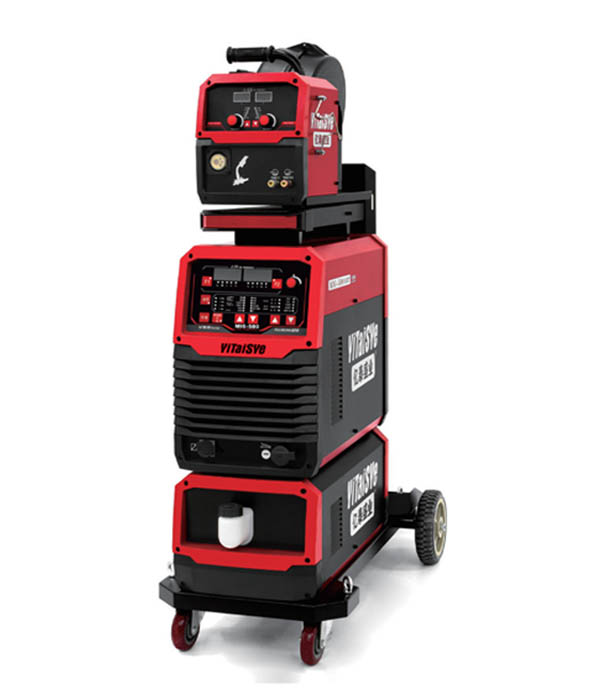

    mig-500v

    Full digital system to realize fine welding of excessive droplet;

    Special control mode to realize splash free welding;

    Double pulse function, beautiful fish scale weld appearance can be obtained;

    The domestic standard digital communication interface realizes the seamless integration with the robot.

    With over-current, over-voltage, under voltage, thermal protection, startup self-protection and other safety protection functions.

    Up to 100 sets of user-defined parameter specifications can be saved for easy calling.


    Product modelMIG-280VMIG-350VMIG-500V
    Input powerAC380V±15% 50HzAC380V±15% 50HzAC380V±15% 50Hz
    Rated input capacity9.2 KVA14 KVA25 KVA
    Rated input current14A21A38A
    Rated input voltage25V31.5V39V
    Rated load duration60%60%60%
    Output no-load voltage45101106
    Output current range20-280A20-350A20-500A
    Output voltage range14-40V14-45V14-50V
    power factor≥0.87≥0.87≥0.87
    Wire feeding typePush / pull wirePush / pull wirePush / pull wire
    Gas flow15-2015-2015-20
    Cooling mode of welding gunAir coolingWater cooling / air coolingWater cooling / air cooling
    Enclosure protection classIP21SIP21SIP21S
    Insulation classHHH
    Overall dimension910X420X790mm1040X515X1415mm1040X515X1415mm
    weight49Kg98 Kg104Kg
    MIG-500V
    MIG-500V 2021-3-17 Be read 2371 times
