      1. MIG-500X

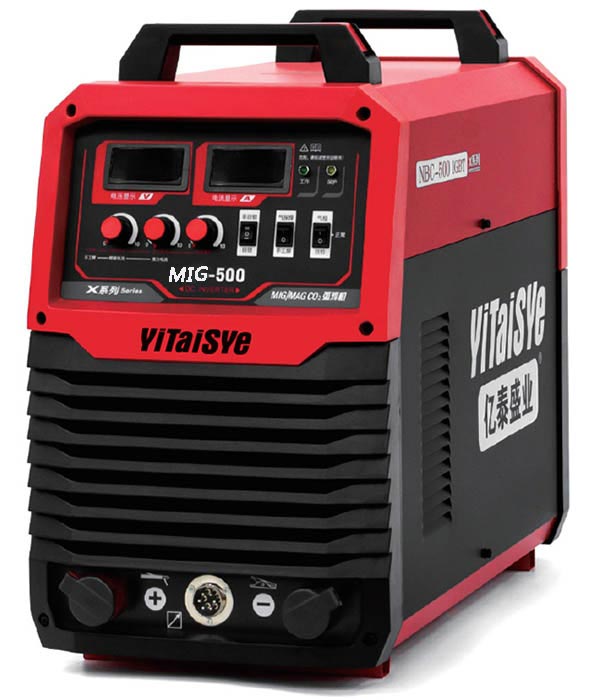

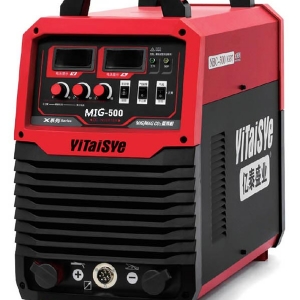

    MIG-500X

    具有手弧焊、气保焊、碳弧气刨功能;引弧容易,成功率高;收弧时具有消球功能;采用波形控制技术、改善成型,降低飞溅;焊接变形小,焊缝成型好;送丝速度稳定,无电磁噪声;高频逆变,体积

    icon图标Hotline:400-679-7773

    icon图标Toll free:0537-6440898

    icon图标Address: machun electromechanical Industrial Park, Jiaxiang County, Jining City, Shandong Province

    给我们留言

    信息详情

    500x

    t has the functions of manual arc welding, gas shielded welding and carbon arc gouging;

    Easy arc striking and high success rate;

    It has the function of eliminating ball during arc extinguishing;

    Adopt waveform control technology, improve molding and reduce splash;

    Small welding deformation and good weld formation;

    The wire feeding speed is stable without electromagnetic noise;

    High frequency inverter, small size, light weight, energy saving and power saving;

    High welding deposit rate;

    The current and voltage are continuously adjustable with wide application range;

    Digital display, welding parameters can be preset accurately;

    Applicable to solid / flux cored wires;

    High load persistence rate, continuous welding for a long time;

    It is mainly used in various welding positions of black metal materials such as carbon steel, low alloy steel and stainless steel.


    Product modelMIG-350XMIG-500XMIG-630X
    Input powerAC380V±15%AC380V±15%AC380V±15%
    Rated input capacity14.4KVA25KVA36KVA
    Input current22A38A54A
    Welding voltage regulation range17-31V17-39V17-44V
    Welding current regulation range60-350A60-500A60-630A
    Scope of application0.8-1.2mm1.0-1.6mm1.0-2.0mm
    Rated load duration60%60%60%
    Full load efficiency89%89%89%
    Wire feeding typePush wirePush wirePush wire
    Enclosure protection classIP21SIP21SIP21S
    Cooling mode of welding gunAir coolingAir coolingAir cooling
    Overall dimension595X306X530mm628X330X565mm628X330X565mm
    weight34.2Kg43Kg49.3Kg
    MIG-500X
    MIG-500X 2021-3-17 Be read 442 times
