    • MMA-630STG
      1. MMA-630STG

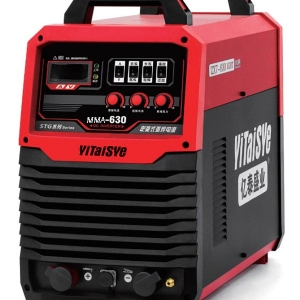

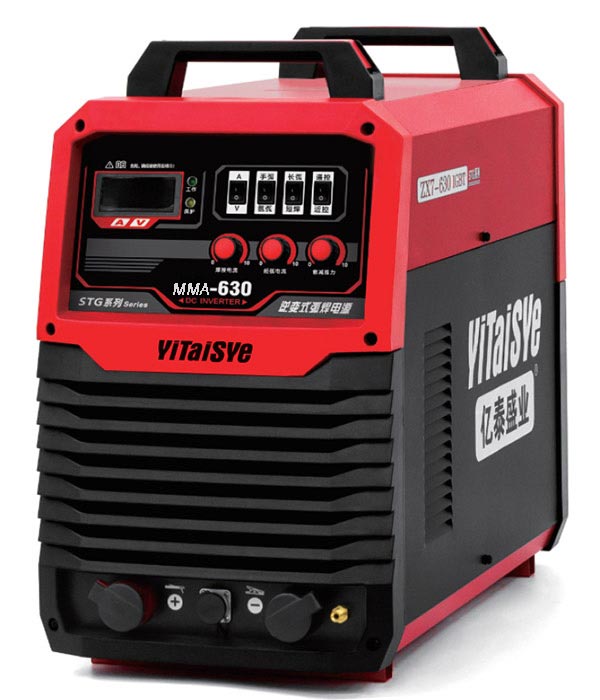

    MMA-630STG

    —机可完成赢弧焊、手弧焊两道工序;显著减少的铜铁损,提高了焊机的整机效率,节能效果显著;数显表头,焊接电流可精;具有引弧容易、飞溅小、电流稳定、成形好等特点。具有多种防护功能,温度保护、过流保护、短路

    icon图标Hotline:400-679-7773

    icon图标Toll free:0537-6440898

    icon图标Address: machun electromechanical Industrial Park, Jiaxiang County, Jining City, Shandong Province

    给我们留言

    信息详情

    630stg

    One machine can complete two processes of arc welding and manual arc welding;

    Significantly reduce the copper and iron loss, improve the overall efficiency of the welding machine, and have remarkable energy-saving effect;

    Digital display meter, welding current can be refined;

    It has the characteristics of easy arc striking, small splash, stable current and good forming.

    It has a variety of protection functions, such as temperature protection, overcurrent protection, short circuit protection, etc; The inverter frequency is 20kHz, with small volume and light weight.

    It has the function of automatic compensation for voltage fluctuation, strong resistance to power grid fluctuation and stable and reliable welding current;

    Arc thrust can be adjusted with the length of welding cable to realize long-distance welding;

    It can be widely used in the welding of various acid-base electrodes.


    Product modelMMA-400STGMMA-500STGMMA-630STG
    Input powerAC380V±15%AC380V±15%AC380V±15%
    Rated input capacity20.5KVA25 KVA31.5KVA
    Input current32A38A47A
    No load voltage75V75V75V
    Load duration60%60%60%
    Full load efficiency89%89%89%
    power factor0.950.950.95
    Enclosure protection classIP21SIP21SIP21S
    Cooling mode风冷风冷风冷
    Overall dimension595x306x530mm628x330x565mm628x330x565mm
    weight30Kg39Kg45Kg
    MMA-630STG
    MMA-630STG 2021-3-17 Be read 363 times
    Previous:MMA-630SNext:MMA-630S
