      1. MMA-250T

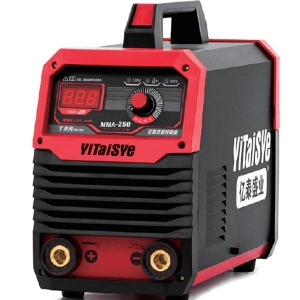

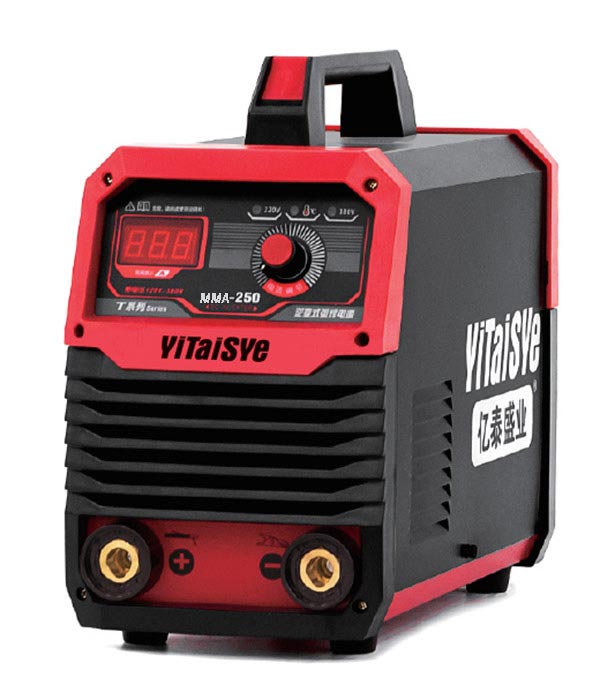

    MMA-250T

    Adopt advanced IGBT single tube inverter technology;

    The control circuit adopts reliable PWM control technology, with good constant current, stable welding current, accurate control and superior performance;

    High load continuity, continuous welding;

    icon图标Hotline:400-679-7773

    icon图标Toll free:0537-6440898

    icon图标Address: machun electromechanical Industrial Park, Jiaxiang County, Jining City, Shandong Province

    给我们留言

    信息详情

    16159646056387113

    Adopt advanced IGBT single tube inverter technology;

    The control circuit adopts reliable PWM control technology, with good constant current, stable welding current, accurate control and superior performance;

    High load continuity, continuous welding;

    The internal structure has three prevention functions (dust-proof, moisture-proof and anti-corrosion) to improve the reliability of the machine in harsh environment;

    This machine can be used for all types of welding rods, including acid, alkaline, J507, J508 and stainless steel welding rods.


    Product modelMMA-200TMMA-235TMMA-250TMMA-315TMMA-400T
    Input powerAC120V-560VAC120V-560VAC120V-560VAC120V-560VAC120V-560V
    Rated input capacity8KVA10.7KVA15.2KVA18.2KVA20.5KVA
    Inverter frequency20KHz20KHz20KHz20KHz20KHz
    No load voltage60V60V60V60V60V
    Load duration60%60%60%60%60%
    Current regulation range10-200A10-235A10-250A10-315A10-400A
    Suitable electrode diameter1.6-2.5mm1.6-3.2mm1.6-3.2mm1.6-4.0mm1.6-4.0mm
    efficiency85%85%85%85%85%
    Insulation classFFFFF
    Overall dimension285 x158 x245mm285 x158x245mm360 X170 x295mm418 x210 x360mm450 x240 x398mm
    weight3.2Kg3.2Kg5.6Kg7.9Kg10.3 Kg
    MMA-250T
    MMA-250T 2021-3-17 Be read 524 times
