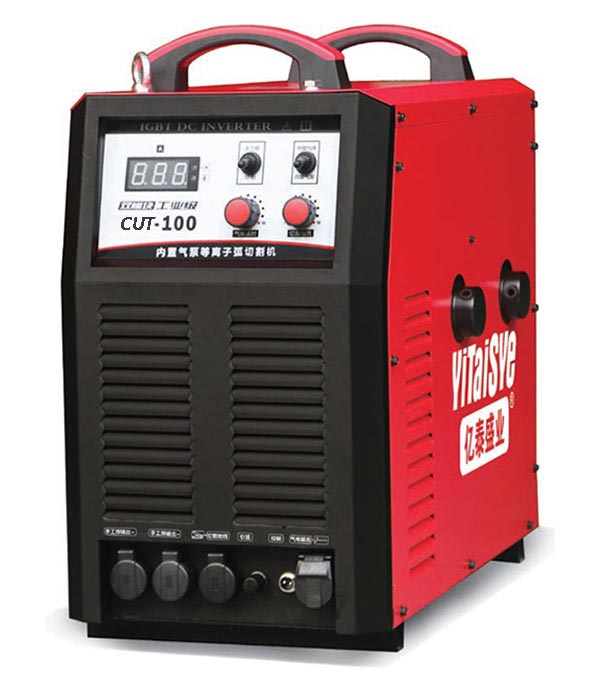

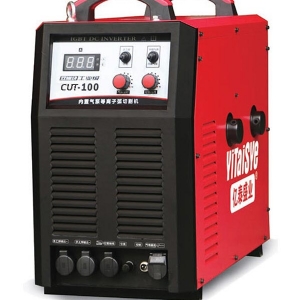

Advanced IGBT inverter technology is adopted for accurate feedback control, and the current output is stable;
With built-in air pump, it can cut without external air pump;
It adopts DSP digital microprocessor control and optimizes program control. During operation, the air outlet of the air pump is smooth and the arc striking is easy;
The cutting arc is stable, the start and stop of air pump and the fluctuation of power grid voltage have no effect on the current, and the notch is smooth;
The pump head of well-known brand oil-free silent air pump is adopted, which is quiet without noise during air pump operation and cutting operation;
Advanced pulse arc striking mode and gas circuit control, the success rate of arc striking is 100%;
It can cut a variety of metal plates such as carbon steel, stainless steel, galvanized steel, copper and aluminum.
| Product model | CUT-80 | CUT-100 | CUT-120 | CUT-160T |
| Rated input voltage | AC220V/380V±15% | AC380V±15% | AC380V±15% | AC380V±15% |
| Rated input capacity | 13.3KVA | 16.5KVA | 27.2KVA | 34KVA |
| Rated No-Load Voltage | 300V | 300V | 300V | 300V |
| power factor | 0.95 | 0.95 | 0.95 | 0.95 |
| Cutting current regulation range | 10-80A | 30-100A | 30-120A | 30-160A |
| Cutting thickness | 20mm | 35mm | 40mm | 50mm |
| Rated no-load duration | 60% | 60% | 60% | 60% |
| Insulation class | F | F | F | F |
| Enclosure protection class | IP21S | IP21S | IP21S | IP21S |
| Overall dimension（mm） | 530X290X555 | 640X320X640 | 640X320X640 | 620X320X645 |
| weight | 36Kg | 55Kg | 55Kg | 55Kg |
