Advanced IGBT inverter technology is adopted for accurate feedback control, and the current output is stable;
High load continuity, with arc striking current and current thrust adjustment function;
It has the function of automatic compensation for voltage fluctuation, stable arc, uniform molten pool, small spatter and beautiful weld formation;
The fan adopts isolation structure to prevent rainwater from entering;
Power saving design, no arc at five second interval, automatically cut off the power supply of the main circuit, safe and reliable.
Mine and coal mine underground 380v-660v or 660v-1140v power supply.
Suitable for welding carbon steel, alloy steel, cast steel, stainless steel, copper and alloy.
| Product model | MMA-315 | MMA-400 | MMA-500 |
| Input power | AC380V/660V±15% | AC380V/660V±15% | AC380V/660V±15% |
| Input power | AC660V/1140V±15% | AC660V/1140V±15% | AC660V/1140V±15% |
| Input frequency | 50/60 | 50/60 | 50/60 |
| Rated input power capacity | 20KVA | 24.5KVA | 35KVA |
| No load voltage | 75V±5 | 75V±5 | 75V±5 |
| Current regulation range | 20-315A | 20-400A | 20-500A |
| Thrust current regulation range | 10-180 | 10-230 | 10-280 |
| Regulation range of arc striking current | 20-120 | 20-160 | 20-200 |
| Rated load duration | 60% | 60% | 60% |
| Overall dimension | 515X275X465mm | 515X275X465mm | 515X275X465mm |
| weight | 25Kg | 26Kg | 27.5Kg |

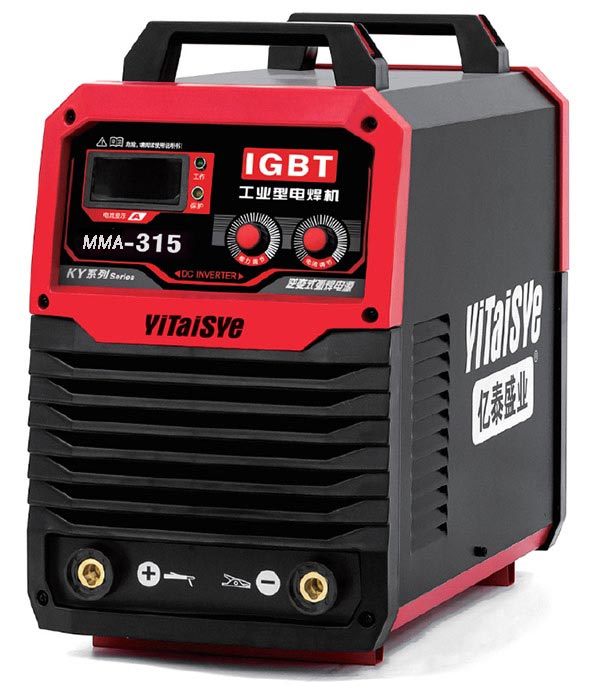

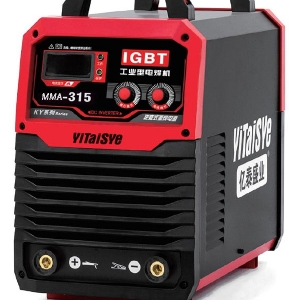

MMA-315
MMA-315 2021-3-17 Be read 1950 times
